Morgan 4 - 4, 4/4
Morgan had introduced its first four wheel vehicle in 1936 as the 4-4 with a Coventry-Climax 1172cc engine, and this was offered as a 2-seater, 4-seater and a drophead coupe. Called '4-4' (later 4/4), the name signified '4 cylinders, 4 wheels' to distinguish it from previous 3-wheelers which often had twin cylinder engines. The 4/4 used the 1256cc Standard Special engine from 1938, and When this engine went out of production because Standard were concentrating on the new Vanguard model, Morgan took up this 2088cc 4-cylinder engine and produced their new Morgan Plus Four. The Plus Four signalled the end of the 4/4 until the 4/4 Series II was introduced in 1955 with the Ford 1172cc sv engine from the Ford 100E. In 1960 the Series III 4/4 was given the new 997cc ohv engine from the Ford Anglia 105E, and the Series IV model gained the 1340cc engine from the Ford Consul Classic in 1961. With the Classic being a short-lived car Morgan upgraded the 4/4 to series V specification with the 1498cc Ford Cortina engine in 1963. The 1598cc 'Kent' engine was fitted to the 4/4 1600 from 1968 and upgraded to GT specification from 1971. In 1981 there is briefly a Morgan 4/4 Twin Cam fitted with a 1600 Fiat engine which is replaced with the Ford CVH 1597cc engine in 1982, and in 1991 gains a fuel-injected Ford 1600 engine and 5-speed gearbox.
aa_Morgan 4-4 1936 badge
Morgan 4/4 1936 - badge on grille
aa_Morgan 4-4 1967 badgeb
Morgan 4/4 1967 - badge on bonnet
aa_Morgan 4-4 1989 4-seater badge
Morgan 4/4 1989 - badge on bonnet
ab_Morgan 4-4 1947 grille
Morgan 4/4 1947. Morgan 4/4 (and Plus 4) had flat radiator grilles until 1954
ac_Morgan 4-4 1936 head
Morgan 4/4 1936. Introduced in 1936, the Morgan 4/4 had a Coventry Climax 1172cc engine.
ac_Morgan 4-4 1947 head
Morgan 4/4 1947. From 1938 to 1949 the Morgan 4/4 was powered by a 1256cc version of the Standard Nine engine, supplied by Standard boss Sir John Black who was a friend of HFS Morgan.
ac_Morgan 4-4 1976 4-seater head
Morgan 4/4 1976 4-seater. Powered by A Ford 1600E crossflow engine.
Morgan 4-4 1936 front
Morgan 4/4 1936. Introduced in 1936, The Morgan 4-4 (Four wheels, four cylinders), was built on a steel z-section chassis with ash-framed body
Morgan 4-4 1936 rear
Morgan 4/4 1936.The Morgan 4/4 was introduced in 1936 with 2-seater and 4-seater bodies, but a Drophead Coupe was added to the range in 1938
Morgan 4-4 1947 drophead  front
Morgan 4/4 Drophead Coupe 1947. The Drophead body had been added in 1938 and continued on 4/4 and Plus 4 models into the 1950s
Morgan 4-4 1947 drophead  rear
Morgan 4/4 Drophead Coupe 1947
Morgan 4-4 1947 front
Morgan 4/4 1947. The 4/4 restarted production after the war with a 1256cc version of the Standard 9 engine especially made for Morgan
Morgan 4-4 1967 frontb
Morgan 4/4 1967. Powered by the Ford Cortina 1498cc engine
Morgan 4-4 1967 rearb
Morgan 4/4 1967. This is the two-seater body which most Morgans were sold with.
Morgan 4-4 1976 4-seater front
Morgan 4/4 1976. The 4-seater body is a little ungainly at the back, and only really for occassional use. A Cortina MkIII engine powered these 4/4 cars

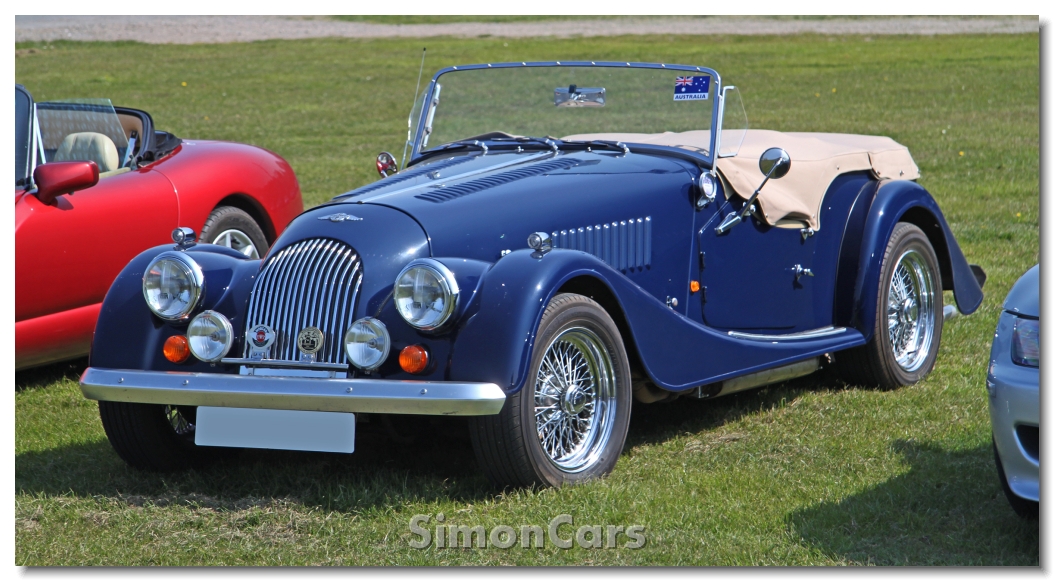

Morgan 4-4 1989 4-seater front
Morgan 4/4 1989 4-seater. Powered by a Ford 1597cc CVH engine from the Escort XR3 turned around into a North-South format
Morgan 4-4 1989 4-seater rear
Morgan 4/4 1989. Powered by a Ford 1597cc CVH engine. This is the 4-seater body with a squarer tail to accomodate an extra row of occassional seats
s_Morgan 4-4 1936 side
Morgan 4/4 1936.
