Morris Minor Series II 1952 - 1956
In 1952, a more modern BMC A-series ohv engine of 803cc was given to create the Series II. The Minor was available as a 2-door Saloon, 4-door saloon and 2-door convertible, but in 1953 a new wooden-bodied traveller was introduced along with the LCV models in Van or Pickup form. The split screen and 'cheese grater grille continued although the bonnet now acquired a large 'handle' with 'M' badges on either side. In 1954 the grille was changed to one with horizontal bars. In 1956 the Series III Minor was launched with curved windscreen and bigger rear window; and 948cc engine.



aa_Morris Minor Series II badgea
Morris Minor Series II - badge on bonnet side
 aa_Morris Minor Series II badger
Morris Minor Series II - bootlid badge
 aa_Morris Minor Series II Ornament
Morris Minor Series II - bonnet ornament. This Mazak 'M' ornament was only introduced on the Series II cars, and is a way of identifying early Series II cars from late Series MM cars which lacked this ornament.
 ac_Morris Minor Series II 1953 head
Morris Minor Series II 1953. By 1951 all Minors had their headlamps high on the wings and the the front sidelamps went to the grille. Early Series II had the same lights and cheesgrater grille but also had the Mazak 'M' bonnet ornament shown on this car.
 ac_Morris Minor Series II 1955 Traveller head
Morris Minor Series II. From the front, the Traveller was identical to Series II saloons.
Morris Minor Series II 1952 front
Morris Minor Series II. When the Series II was introduced in 1952 it kept the same 'cheesegrater' grille and lights of the later 'highlight' Minor Series MM.
 Morris Minor Series II 1952 rear
Morris Minor Series II. The 'triangular' tail lights show this Series II to have been produced between 1952 and 1954.

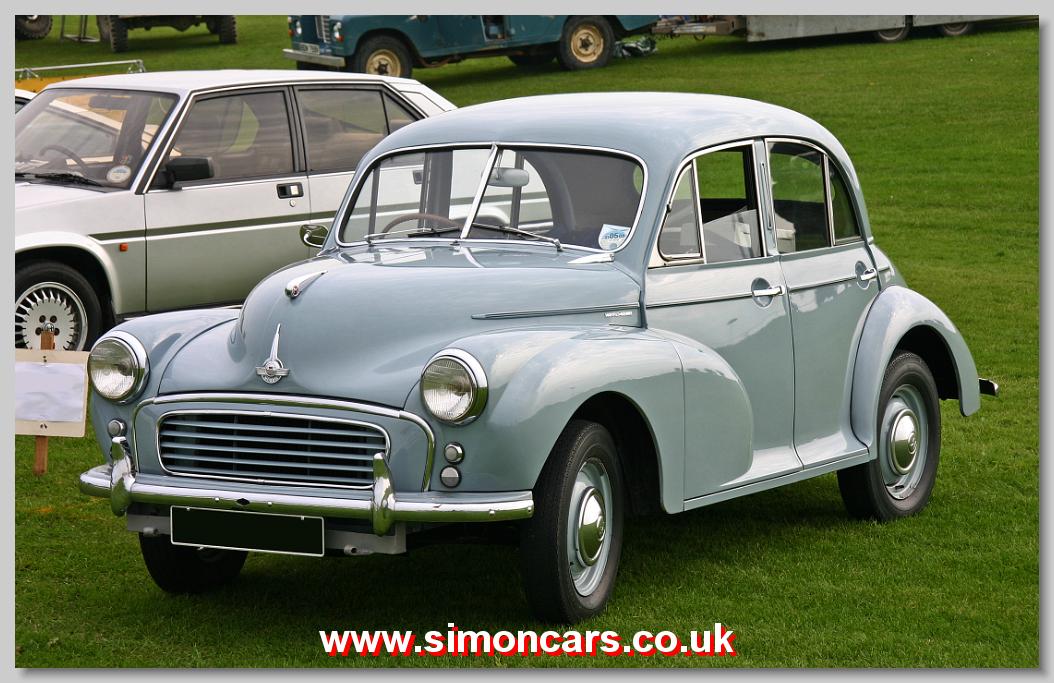

 Morris Minor Series II 1954 frontb
Morris Minor Series II 1954 4-door. In 1952 the Series II Minor was introduced with the 803cc ohv engine from the Austin A30, and the bonnet 'handle' was given bearing an 'M' badge on each side. The 'cheesegrater' grille continued until the horizontal bars grille appeared in 1954
 Morris Minor Series II 1954 frontg
Morris Minor Series II. In 1952 the Morris Minor was given the 803cc ohv "A series" engine from the Austin A30 because Austin and Morris had merged in 1951. This formed the Series II Minor. The grille seen here show this to be a revised 1954 Minor Series II
 Morris Minor Series II 1954 Convertible front
Morris Minor Series II Convertible. Series II Minors were introduced in 1952 and revised in late 1954 with this horizontal grille.
Morris Minor Series II 1954 Convertible rear
Morris Minor Series II Convertible. From 1954 when the Series II was updated, the small glass triangular rear lamps were replaced by rounded plastic lenses on body-coloured plinths.
 Morris Minor Series II 1954 rearb
Morris Minor Series II 1954 4-door
 Morris Minor Series II 1954 rearg
Morris Minor Series II. As well as the 803cc ohv engine, the Series II now had a central speedometer, which helped in making left or right hand drive versions. 260,000 Series II were produced 1952-56
 Morris Minor Series II 1955 Traveller front
Morris Minor Series II. Travellers were available from 1952 after the Series II was introduced. The horizontal grille on this one shows it to be the post 1954 Series II.
 Morris Minor Series II 1955 Traveller rear
Morris Minor Series II.The estate body on the Traveller was detachable from the chassis aft of the front doors. It was constructed entirely of Ash and Aluminium sheets.
n_Morris Minor Series II 1954 stoplight
Morris Minor Series II 1955. This type of rear light was fitted to the later Series II Morris Minors, from 1954 until 1956
 n_Morris Minor Series II lamp
Morris Minor Series II - Trafficator on the c-pillar of the 4-door saloon.
 n_Morris Minor Series II lamps
Morris Minor Series II Convertible. The small white sidelamps existed on the Series II from 1954 and retained by the Minor 1000 until 1961.
 s_Morris Minor Series II 1954 Convertible
Morris Minor Series II Convertible. Series II open-top Minors no longer had removable rear side windows and were now called Convertible instead of 'Tourer'
 s_Morris Minor Series II 1954 side
Morris Minor Series II 4-door. The Series MM morris Minor was introduced with 2-door saloon or 2-door Tourer bodies in 1948, and the first 4-door saloon was launched at Earls Court in 1950. In 1952 the Series II Minor was introduced and in 1954 the horizontal bar grille was given to the cars.
t_Morris Minor Series II 1954 tail
Morris Minor Series II
 w_Morris Minor Series II wheel
Morris Minor Series II
