Renault 4 (1961-92)
Pierre Dreyfus defined the brief for the new Renault R4 to replace the rear-engined 4CV in 1956; He considered the air-cooled cars from Citroen and VW and chose to go with the existing Ventoux engine from the 4CV but adapt it to front wheel drive. In 1961 the new Renault was launched with a 603cc unit as the Renault 3, and with the existing 747cc unit from the 4CV as the Renault 4. On both the lower-priced cars a window in the c-pillar was an optional extra. From 1963 the 845cc engine based on the Dauphine unit was offered and soon became the default engine when the Renault 3 and the basic Renault 4 were dropped. Renault developed a new gearbox for the car, with a dashboard-mounted gearlever extending forward to the gearbox at the front of the engine, but it only had 3 speeds until 1968. Torsion bar suspension gave each wheel independent springing and intriguingly gave a slightly different wheelbase on each side of the car due to the positioning of the bars behind each other underneath. From 1978 Renault 4 GTLs were given an 1108cc Sierra engine from the Renault R8, and a 956cc version of this unit replaced the 845cc Ventoux unit from 1986. The Renault 4 was supposedly replaced by the Renault 5 in 1972, but was kept in production in different locations until 1992 when 8 million had been sold

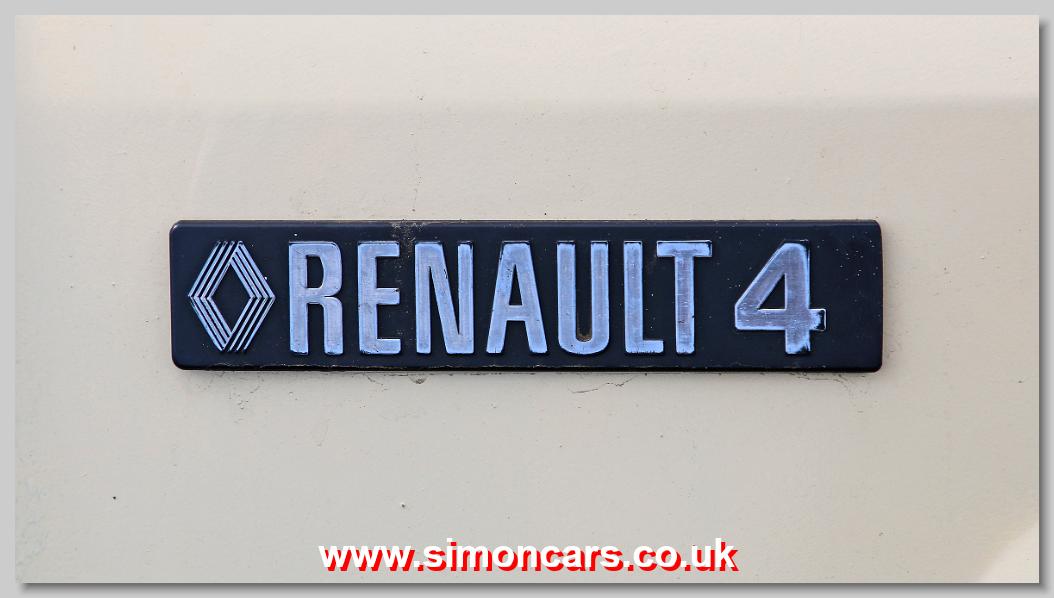

aa Renault 4 1970 badge
aa Renault 4 1970 badge
Renault 4 1970 - badge on rear hatch
aa Renault 4 GTL badge
aa Renault 4 GTL badge
Renault 4 GTL. The Renault 4 was launched as the '4L' (which in French is pronounced 'Quatrelle') because it was marketed as a luxury model. However there was a basic Renault 4, and even a Renault 3 with a mere 603cc engine. The basic Renault 4s were quickly dropped in favour of the 4L. The 4 GTL arrived in 1978 as a better equipped and more powerful Renault 4
ab Renault 4 GTL 1991 grille
ab Renault 4 GTL 1991 grille
Renault 4 GTL 1991. This plastic grille was given in 1978 replacing one from 1974. At the same time the below windscreen ventilation panel lost its metal cover
ab Renault 4L 1966 grille
ab Renault 4L 1966 grille
Renault 4L 1966 - grille. This simple grille was replaced in 1967
ac Renault 4 1962 head
ac Renault 4 1962 head
Renault 4L 1962. Thin bumpers were given to early cars
ac Renault 4 1966 head
ac Renault 4 1966 head
Renault 4L 1966. From 1963 Renault gave an 845cc engine in the higher priced Renault 4 cars, including the 4L. The lowly 603cc engine used in the Renault 3 was axed in 1962 but the 'standard' 747cc engine carried on.
ac Renault 4 1970 head
ac Renault 4 1970 head
Renault 4 1970. In 1967 the Renault 4 was given a new grille incorporating the headlamps
ac Renault 4 1991 GTL head
ac Renault 4 1991 GTL head
Renault 4 GTL 1991. From 1978 there was a revised plastic grille and rectangular side lamps.
Renault 4 1962 L front
Renault 4 1962 L front
Renault 4L 1962. In 1962 the Renault 4 still had non-opening windows in the rear doors, sliding glass to match the front doors was given in 1964. The Renault 4 Super got hinged rear quarter windows.
Renault 4 1962 L rear
Renault 4 1962 L rear
Renault 4L 1962. From the launch only the better equipped 4l had the 6-light bodies, the standard 4 and the lowly 3 only had blind rear quarter panels.
Renault 4 1966  L frontn
Renault 4 1966 L frontn
Renault 4L 1966
Renault 4 1975 front
Renault 4 1975 front
Renault 4 1975, powered by an 845cc engine
Renault 4 1975 rear
Renault 4 1975 rear
Renault 4 1975. The Renault 4 body continued unchanged throughout its production run
Renault 4 GTL 1991 front
Renault 4 GTL 1991 front
Renault 4 GTL 1991. Introduced in 1978 as a model higher than the 4L, the 4GTL was better equipped, had an 1108cc engine from the Renault 6, and was given plastic rubbing panels on the body sides.
Renault 4 GTL rear
Renault 4 GTL rear
Renault 4 GTL. Launched in 1961, the Renault 4 had 5-doors and was designed to be even more practical than the Citroen Cv. The grey plastic side panels were given to the upmarket 4 GTL in 1978
Renault 4 TL 1986 Savane front
Renault 4 TL 1986 Savane front
Renault 4 TL 1986 Savane. From 1986 the Renault goes into wind-down of production and the basic Renault 4 stops production. Both the 4 TL and 4 GTL continue, but now with the Cleon 956cc engine for the 4 TL (now named 'Savane') and 1.108cc for the 4 GTL (now named 'Clan') until production ends in 1992
t Renault 4 1975 tail
t Renault 4 1975 tail
Renault 4 1975. Renault was an early adopter of the top-hinged rear tailgate
Renault 5 1979 4-door front
Renault 5 1979 4-door front
Renault 5 1979 4-door. Renault introduced a 4-door version of the Renault 5 in 1979; the Spanish market preferred 4-door cars
Renault 6 1970 front
Renault 6 1970 front
Renault 6 1970, with 845cc engine from its sibling the Renault 4, but an 1,108cc engine was available from 1970, and a new grille was given in 1973 with square headlamps
